BRAVO SUP, SUP-HP, SUP-3 & KITE PUMPS, SPARE HOSE (BLUE) WITH SCREW PUMP FITTING & BAYONET AT THE OUTPUT END - SP212/S3-K, R151027N

BRAVO SUP, SUP-HP, SUP-3 & KITE PUMPS, SPARE HOSE (BLUE) WITH SCREW PUMP FITTING & BAYONET AT THE OUTPUT END - SP212/S3-K, R151027N

Spare Pump Hose with female 20mm bayonet fitting at output end of the hose, and the pump end has the Bravo/Scoprega female screw fitting which fits onto many of the Bravo pumps (and others).

This hose is also suitable for many other pumps on the market, which utilise the same thread standards and bayonet fittings.
Care should be taken when fitting any hose to the thread on the pump, as they are easy to 'cross'.

If you are buying this hose to fit a pump which is not the original model, or you believe is not a Bravo pump, great care should be taken when trying the hose.

We cannot give refunds or exchange hoses which are returned damaged.

Most Bravo/Scoprega Hand Pumps have a thread O.D. of 28mm with a Root Diameter of 24.5mm and a pitch of approx. 4mm. The threads are 'square section' approx 2mm wide and 1.8mm deep

Hose item/factory numbers are SP212/S3-K, R151027N. Hose colour is Blue
Other (male 20mm Bayonet) hose fittings are available separately. We have a wide variety on our website

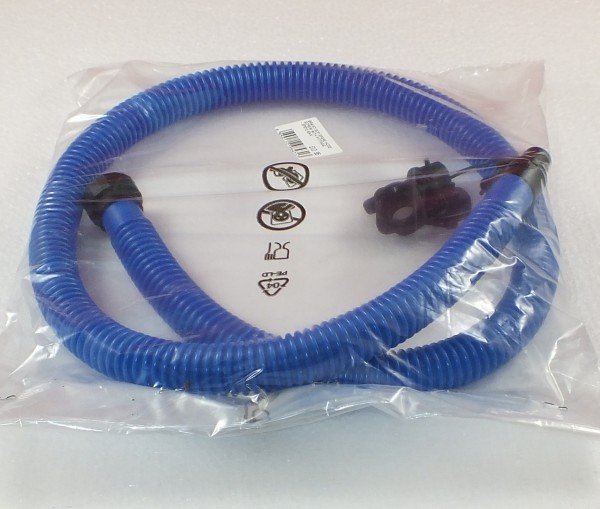

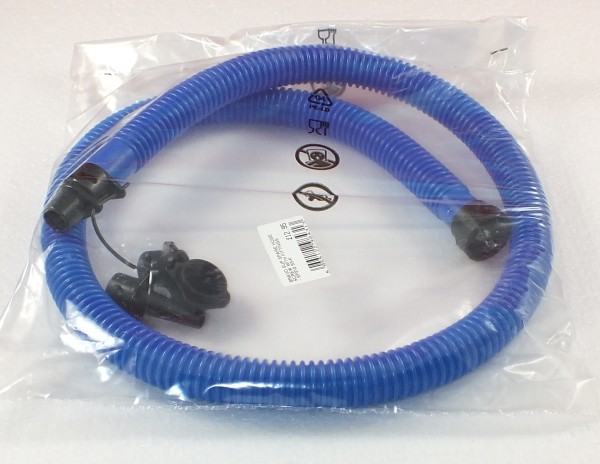

Hose is supplied with 4 x Bayonet fittings as shown in picture, to cover the most popular applications for Kites, Wings, Tents, Airbeds, Kayacats, etc.

The fittings included are:

BRAVO 9 to 13mm PUSH IN ADAPTOR FOR 20mm 'MOTHER' BAYONET- 5204046-20

BRAVO BOSTON 17 TO 18mm PUSH IN ADAPTOR FOR 20mm 'MOTHER' BAYONET - 5204047-20

BRAVO BOSTON Style SCREW FITTING - 17.6mm MALE THREAD (PRYDE etc) - 5204045-20

BRAVO BOSTON Style SCREW IN FITTING for - 24mm O.D. MALE THREAD SPIGOT - 5204048-20

If you need to inflate most modern SUP style fittings, we would suggest adding either of these.

BRAVO SUP/KITE SHORT ADAPTOR SP Z022 718/HRK for BRAVO PUMPS 101, 110 & many more with the BRAVO-SCOPREGA 20mm Bayonet (Mother) hose fitting.
Our Ref No : 8455

Or
BRAVO SUP-WING-KITE LONG ADAPOR SP Z203 SP718/ADJ. for BP20/21, BP101, BP110 etc. 20mm Bayonet.
Our Ref No : 8456
