AFS WINDFOIL W95 FFV U15-U17 - FULL CARBON - DEMOUNTABLE MAST & FUSELAGE FOR EASY STORAGE & TRANSPORTATION - CHOOSE FROM 4 FRONT WINGS & 2 STABILISERS

Our Ref No : 8525 £1949.00 Availability: Available to Order
Colour: FFV900 Size: STA240
More From AFS-FOILS - HYDROFOILS
The New AFS WindFoil is labelled FFV U15-U17

WINDFOIL RANGE

Pioneer in the windfoil market since 2009, AFS offers new for this year, a complete redesign of products that can be summarized in 3 words: performance, reliability and feel.

Do not be alarmed that the AFS WindFoil is now labelled FFV U15-U17 - and a lot of the information you will see is about Youth Racing.

This range of foils has to excel for everyone, so is developed to offer exceptional performance for all riders from Recreation to Racer!

FEATURES

WINGS THAT CUT THROUGH THE WATER MORE EFFICIENTLY

The profile and section of our front wings have been designed to improve both speed and glide. The objective of the design office was to increase the surface area while reducing the drag, allowing us to achieve an even better fluid flow around the wing.

More surface area with an optimized chord ensures earlier ascent and delayed descent in variable winds, offering much more sustained flight.

AFS expertise and reliability you can rely on: we only produce our Foils in Carbon, made in our own factory in France.

OUR WINNING PARTNERS FOR THE NEW FRONT WINGS

New 200 & 240 stabilisers with high-performance profile - More elongated aspect ratio (reduced chord, more length) ensures more glide and excellent stability at high speed. They are homogeneous stabilisers allowing you to sail comfortably in all light and strong wind conditions.

With inertia and power, the 240 stabilizer allows you to keep planning through all but the most severe wind drops.

With a reduced wingspan, the 200 stabilizer will boost your v-max to new levels!

T-BAR REMOVABLE OR NOT - FULL CARBON CONSTRUCTION

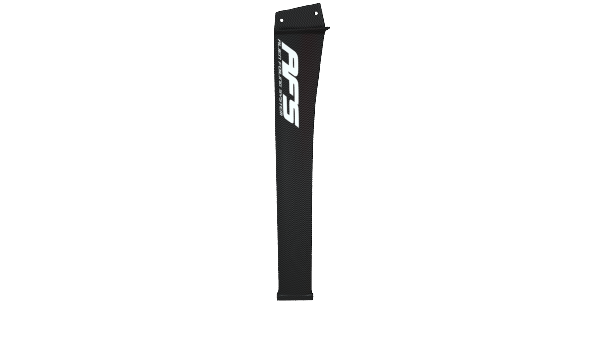

This year, the 95cm mast is removable from the fuselage with a simple 3 screw assembly into a substantial conical pocket.

Less stiffness than a fixed T-BAR we have traditionally run, I hear you ask?

No. Extensive calculations and research have been carried out to obtain a well reinforced assembly. The new conical assembly allows perfect transmission of forces and sensations between the mast and the fuselage. It allows you to fit the 94.5cm Fuselage without any loss of performance from the 95cm mast, with the convenience of a very small pack down with only 3 extra screws.
(This is available in Bonded T-Bar construction on special request if you prefer it this way).

For ultimate performance, we keep in the range a fixed T-BAR (100cm mast and 105 cm fuselage), in Ultra High Modulus carbon for what we believe is still the ultimate Race and high performance recreational rider solution.
(This is available in removable construction on special request if you prefer it this way).

FULL CARBON CONSTRUCTION

The full carbon construction brings rigidity and lightness to the foil (full foil weight: 4.2 kg). In the same way, you will no longer be bothered with marine aggressions such as corrosion which could weaken it.

MADE IN FRANCE
We master the manufacturing process from A to Z of our foils to ensure the best possible quality of manufacture. In addition, the pre-preg construction allows operators to no longer breathe the toxic fumes emanating from the resin. The pre-preg fibers are cut with a laser machine, then assembled in a mould and finally fired at a certain pressure to obtain the desired shape.

THE PACK
The complete foil is sold with its own carry case. It comes with a screwdriver and full set of screws for the foil.

Tech specs:

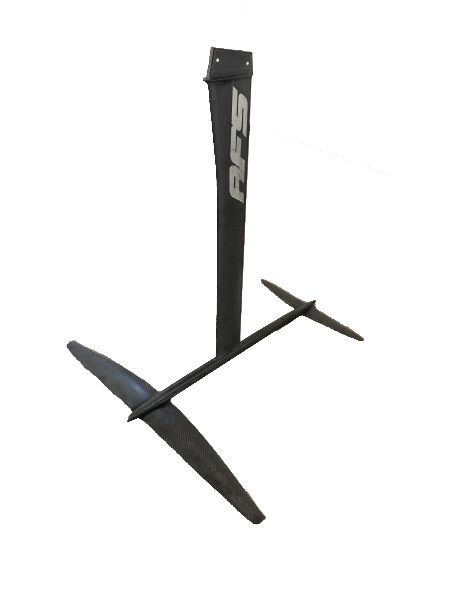

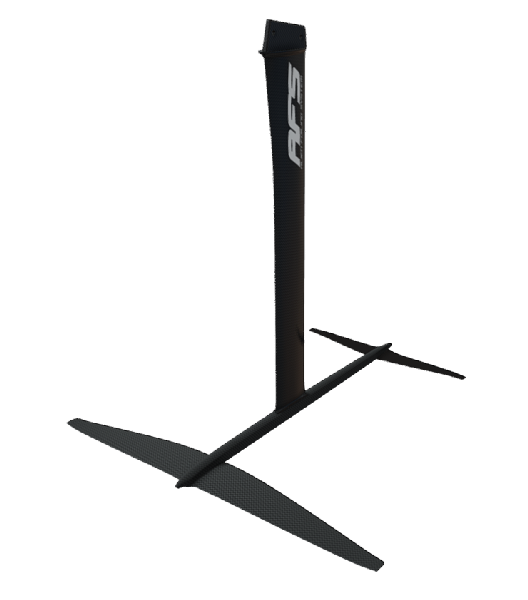

W95 FFV with Demountable 94.5cm Fuselage, 900 front wing and 240 stab, screws and carry bag for complete set.

Shaft construction: Hollow technology Full Carbon PrePreg T700 + HM T800 100% Made in France.
Fuselage construction: Monolithic Full Carbon Prepreg T700 & HM T800
Wings construction: Full Carbon Prepreg T700 + UHM M46J. 100% Made in France.
Front Wing FFV900 Wing Span: 1000mm
Front Wing area: 900 cm2
Front Wing Weight: ?g
Rear Wing Stab 240 Wing Span:550mm
Rear Wing area: 240 cm2
Rear Wing Weight: ?g
Fuselage length: 945mm
Mast Height: 950mm
Weight: ?.?kg
Mast Head: Deep Tuttle Box

* Weight Tolerance: +/- 8%. All information contained in this web page is subject to change and alteration at any time without notice.

Compatable with the following Foils (wings)

2022 onwards
FFV-370
FFV-570
FFV-700
FFV-900

2021 onwards
S-670
S-740
S-840
R-660
R-810

2022 onwards
Stab 200
Stab 240

2021 onwards
Stab 280
