AFS WINDFOIL W85/F-1080 - HOLLOW/MONOLITHIC FULL CARBON PREPREG - BONDED FUSELAGE/MAST - DTT HEAD

Our Ref No : 8395 £1599.00 Availability: In Stock
Colour: CARBON FIBRE
More From AFS-FOILS - HYDROFOILS
AFS F RANGE

100% Carbon Construction - Accessible, Versatile Foil: Freeride/Progressive

The AFS 85 has been completely revised for 2021/22 and is now available with either the F770 or F1080 front wing, with a fully Bonded Mast to Fuselage 'T'Bar for outstanding rider feedback, and as always, is supplied with a lovely bag to keep all you components safe and always to hand.

The One Piece 'T' Bar is a standard feature across the whole range of AFS foils, offering even better performance and durability, as well as great simplicity - just fit the wings with 5 screws, secure the Deep Tuttle head into your fin box with 2 more screws and you are ready to go and have fun!

F range in detail

The AFS F range is ideal if you want to learn to foil and stay using the same great foil for many years to come, or simply want a great all round foil.

Moderate aspect ratio (length of the wing and the chord) will allow to have an easy foil, docile but nevertheless efficient.

Don't feel anything under your feet (even after a good session)

The full carbon construction brings rigidity and lightness to the foil (full foil weight: 3.7 kg). In the same way as we use no Aluminium in any of our products, you will not be bothered with marine aggressions such as corrosion which could weaken the latter. (we do of course recommend that you lubricate the screws and inserts of our foils with Lithium Grease for ultimate durability and ease of use)

Its shorter mast makes it the most accessible foil in our range. By reducing its drag this foil does not require flying high while also making launching and landing more comfortable.

Navigate serenely on your AFS FOIL

The tolerant profile of the wings makes their behaviour predictable and smooth.

Simple and easy - The F range is offered with a choice two front Wings - F-1080 or F-770 - and a single stabilizer (320). The F1080 is definitely the choice for most beginners and for all riders over 80kg looking for best early take off, while retaining top speeds well into 20 knots.
Made in France

We control the manufacturing process of our foils from A to Z in our own factory in Brest, to ensure the best possible manufacturing quality. In addition great strength, our prepreg construction means our staff no longer breath toxic vapours emanating from the resin. The prepreg fibers are cut using a laser machine, then assembled in precision moulds, which are then baked under pressure to produce the most accurate and consistent component possibly with the best strength to weight ratio as well!

All the Wings from the S and R range can be used on the W85 Mast and Fuselage and even the 2022 range are backwards compatibly, but we really recomend these to be used with the 94.5 Rectangular Fuselage fitted to the W95 and W105 masts from 2021 and the new 105 Fuselage from 2022.

The F series wings are not compatible with the >2021 Rectangular fuselages


F-770 F-1080
Wingspan (mm) 700 800
Surface (cm2) 770 1080
Aspect Ratio 6.3 5.9

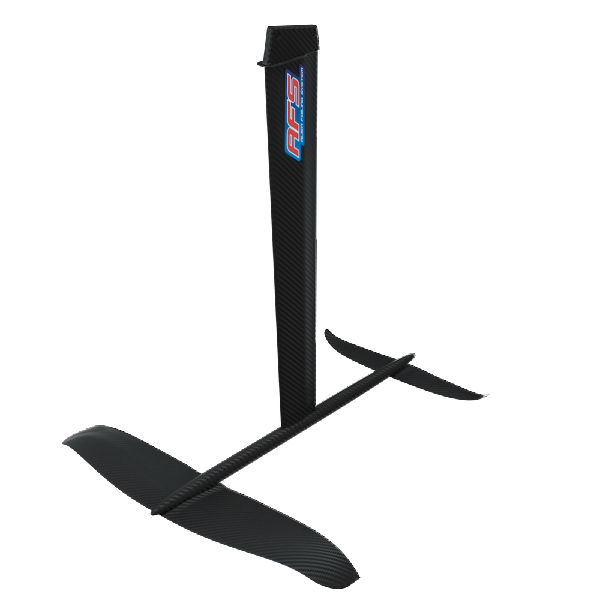

Supplied as a complete Hydrofoil - Included as standard equipment: Mast/Fuselage and a pair of foils (wings) -F-1080 front wing - Stabilizer 320 - 5 x Torx M6 Wing screws -Screwdriver Torx T30 - T Bag and Wing Bags to store/transport all components.
Tech specs:

Mast / Fuselage construction: Hollow Mast/Monolithic full Carbon Prepreg Bonded Mast to Fuselage.
Wings construction: Monolithic full Carbon Prepreg
Front Wing width: 800mm
Front Wing area: 1080 cm2
Fuselage length: 885mm
Mast Height: 850mm
Weight: 3.7kg
Mast Head: Deep Tuttle Box

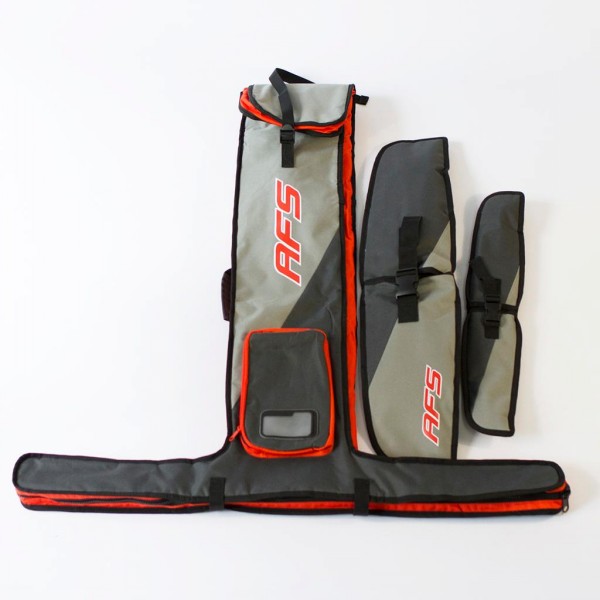

"T Bag and Wing Covers" included

* Weight Tolerance: +/- 8%. All information contained in this web page is subject to change and alteration at any time without notice.


Compatible with the following AFS 'W' (Windfoiling) Foils (wings)

F-a700
F-770
F-700
F-s700
F-800
Stab-V1
S-750
S-800
S-950
Stab-V2
